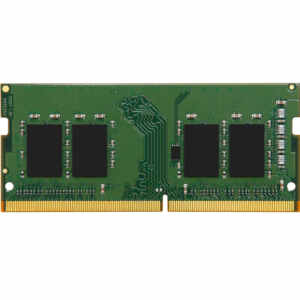

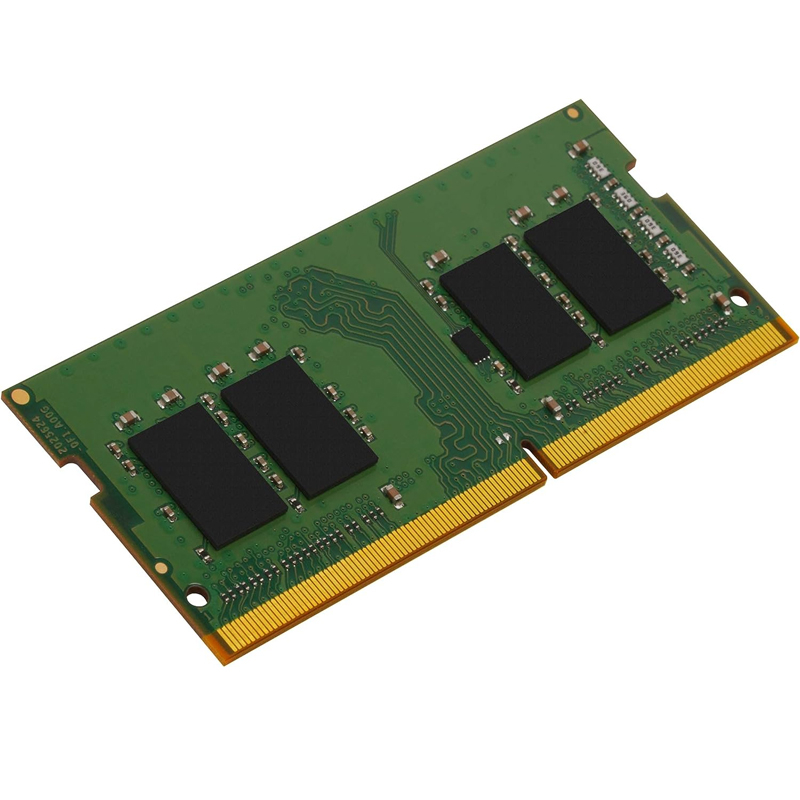

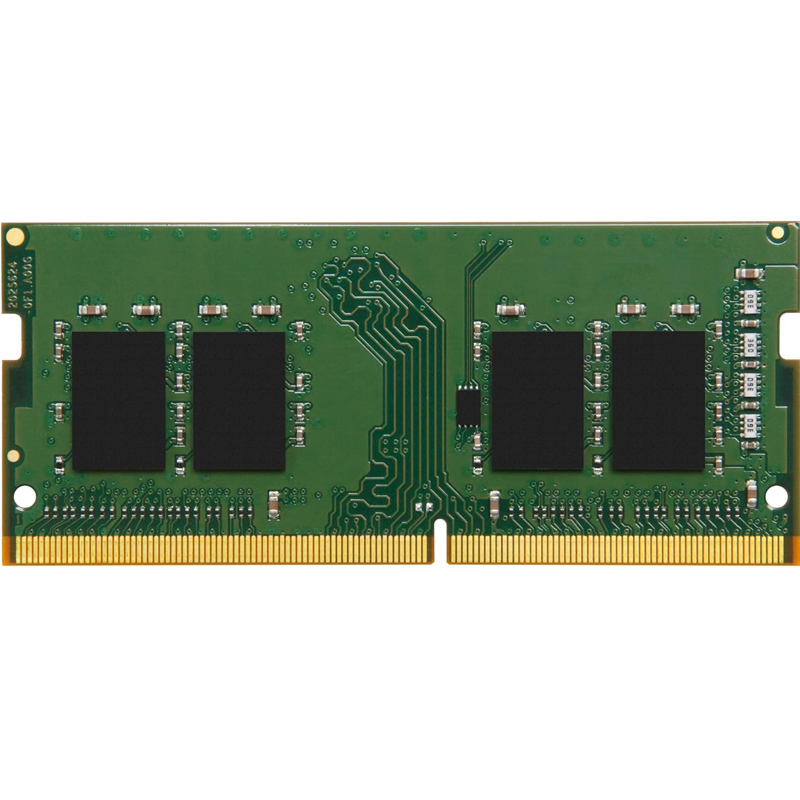

KINGSTON SODIMM 8GB 3200MHz DDR4 KVR32S22S8/8 ram pomnilnik
Kingston KVR32S22S8/8 1G x 64-bitni (8GB) DDR4-3200 CL22 SDRAM (sinhroni DRAM), 1Rx8, non-ECC, pomnilniški modul, ki temelji na osmih 1G x 8-bitnih komponentah FBGA. SPD je programiran na standardno časovno zakasnitev JEDEC DDR4-3200 22-22-22 pri 1,2 V. 260-pinski DIMM uporablja zlate kontakate.
- napajanje: VDD = 1.2V Typical
- VDDQ = 1.2V običajno
- VPP = 2.5V običajno
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: višina 1.18″ (30.00mm)
- RoHS Compliant and Halogen-Free
*slike so simbolične
Podatki proizvajalca:
Kingston Technology International Ltd / Kingston Digital International Ltd
Stratus House, College and Business Technology Park
Blanchardstown Road North
Dublin 15, D15 PEC4
Irska
[email protected]
| Teža | 0,04 kg |
|---|---|
| Dimenzije | 95 × 46 × 8 cm |
| Proizvajalčeva koda | |
| EAN koda | |
| Namembnost: | |
| Proizvajalec | |
| Kit: | |
| Tip | |
| Kapaciteta | |
| Hitrost delovanja: | |
| Latence | |
| Napajalna napetost: | |
| Hladilnik: | |
| Barva | |
| Garancija |
